Insolation

1. Meaning, spectrum and measurement

Insolation, short for incoming solar radiation, is the radiant energy received from the Sun. It may refer to radiation arriving at the top of the atmosphere or reaching the ground, so the reference surface must be specified. Irradiance is the rate of energy received per unit area, expressed in watts per square metre. Energy accumulated over a period may be expressed in megajoules per square metre per day or kilowatt-hours per square metre per day.

The Sun, with an effective surface temperature of approximately 5,780 K, emits most of its energy at much shorter wavelengths than the Earth. Solar radiation includes ultraviolet, visible and near-infrared energy, with maximum spectral intensity near visible wavelengths. Earth, being much cooler, emits predominantly longwave thermal infrared radiation. Thus, infrared is not exclusively terrestrial: some incoming solar energy is also infrared.

The traditional term solar constant describes solar irradiance outside the atmosphere at the mean Earth–Sun distance, measured perpendicular to the rays. Its accepted modern value is about 1,361 W/m², although some older textbooks use approximately 1,367 W/m². It is not perfectly constant. A pyranometer measures hemispherical solar irradiance on a surface; a pyrheliometer measures the direct solar beam while pointing towards the Sun.

• Direct radiation reaches the surface without being scattered out of the solar beam.
• Diffuse radiation reaches the surface after atmospheric scattering.
• Global horizontal irradiance combines direct radiation projected onto a horizontal surface and diffuse sky radiation.

2. Astronomical controls on insolation

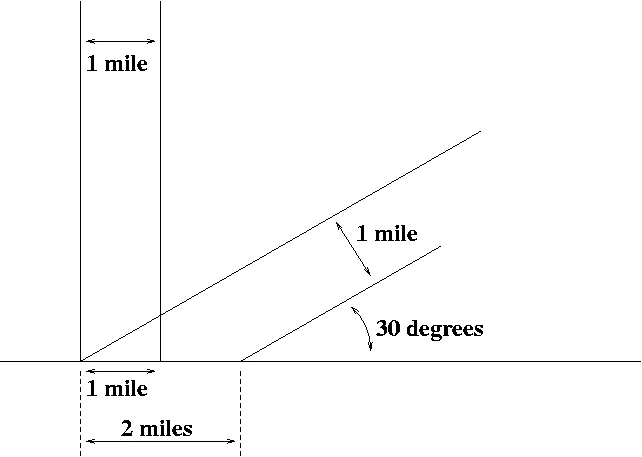

The angle of incidence determines how concentrated solar energy is at a surface. When rays strike nearly vertically, a given beam illuminates a smaller area. Oblique rays distribute the same energy over a larger area and travel through a longer atmospheric path, increasing opportunities for scattering and absorption. At the top of the atmosphere, irradiance on a horizontal surface varies with the cosine of the solar zenith angle when the Sun is above the horizon.

Latitude, season and time of day together determine solar altitude. Earth’s rotation produces the daily cycle, while its approximately 23.5° axial tilt and revolution cause seasonal changes in solar declination and daylight duration. The overhead Sun migrates between the Tropic of Cancer and the Tropic of Capricorn. It never reaches the zenith beyond these latitudes. Near the equinoxes, day and night are approximately equal worldwide, although refraction and the Sun’s apparent size modify actual sunrise-to-sunset duration.

Day length affects the daily total of insolation, not merely its midday intensity. Polar regions can receive substantial daily top-of-atmosphere insolation during continuous summer daylight, despite low solar altitude. Therefore, the statement that insolation always decreases from the equator to the poles requires qualification: it is broadly valid for annual averages, not every individual day.

Earth’s orbit is slightly elliptical. Incoming solar irradiance varies inversely with the square of Earth–Sun distance. Earth is closest to the Sun in early January and farthest away in early July; irradiance at perihelion is approximately 7% greater than at aphelion. Nevertheless, the Northern Hemisphere has winter in January because axial tilt governs solar angle and day length.

3. Atmospheric and surface controls

Before reaching the ground, sunlight undergoes absorption, scattering and reflection. Ozone absorbs much harmful ultraviolet radiation; water vapour and other gases absorb selected wavelengths, especially in the near-infrared. Air molecules scatter shorter visible wavelengths more strongly, helping explain the blue sky. Dust, smoke and other aerosols scatter and sometimes absorb solar radiation, modifying both the intensity and the direct-to-diffuse radiation ratio.

Clouds are a major control on surface insolation. Thick clouds generally reduce daytime sunlight at the ground by reflecting considerable solar energy and absorbing some of it. Their effect depends on thickness, altitude and composition. Clouds also absorb and emit terrestrial longwave radiation, so their net climatic influence cannot be understood from shortwave reflection alone. Broken-cloud conditions can occasionally enhance brief local irradiance through reflection from cloud edges.

Altitude and relief also matter. Under comparable clear-sky conditions, high elevations can receive stronger solar radiation because there is less atmosphere above them. However, altitude does not guarantee greater daily insolation where cloudiness is frequent. Slope and aspect alter the angle at which radiation strikes the ground; in Northern Hemisphere mid-latitudes, south-facing slopes generally receive more sunlight than north-facing slopes.

Albedo is the fraction of incident shortwave radiation reflected by a surface. Fresh snow has high albedo, while forests and most dark soils have lower albedo. Water’s reflectivity varies strongly with solar angle and surface conditions. Albedo primarily controls absorption rather than the incoming solar beam: two surfaces receiving equal insolation can absorb different amounts of energy.

4. Global distribution and Earth’s energy budget

Annual mean top-of-atmosphere insolation generally declines poleward, but surface distribution is strongly modified by clouds and atmospheric moisture. Cloudy equatorial regions do not necessarily receive the world’s highest surface solar energy. Clear, dry subtropical deserts often receive greater annual surface insolation. The Sahara and the Arabian Peninsula illustrate the combined influence of relatively high solar altitude, limited moisture and persistent clear skies.

Earth intercepts sunlight over a circular cross-section but distributes incoming energy over a spherical surface four times larger. Consequently, dividing approximately 1,361 W/m² by four gives a global mean incoming flux of about 340 W/m². With a planetary albedo near 0.30, the Earth–atmosphere system absorbs roughly 240 W/m². These are global, annual approximations rather than values applicable to a particular location or noon observation.

Over climatic timescales, absorbed solar energy and outgoing longwave radiation must approximately balance for a stable global mean temperature. A persistent difference changes heat stored in the climate system. Low latitudes generally have a net radiative surplus, while high latitudes have a deficit. Atmospheric circulation and ocean currents redistribute energy poleward, connecting insolation to winds, storms and climate zones.

5. Insolation, temperature and Indian applications

Maximum insolation and maximum temperature do not usually coincide. Solar altitude typically peaks around local solar noon, but near-surface air temperature commonly peaks later because the surface continues gaining more energy than it loses. A similar seasonal lag makes the warmest period occur after the summer solstice in many regions. Cloud cover, evaporation, winds, soil moisture and ocean influence can substantially modify these patterns.

Land and water respond differently to the same solar input. Water has high heat capacity, mixes vertically and uses considerable energy in evaporation; sunlight also penetrates beneath its surface. Land generally experiences faster surface warming and cooling. These contrasts contribute to coastal moderation, land–sea breezes and seasonal thermal contrasts relevant to monsoons, although monsoon circulation also involves moisture, pressure systems and large-scale atmospheric dynamics.

In India, northwestern arid regions possess strong solar-resource potential, while monsoon cloudiness reduces surface insolation seasonally across much of the country. Solar-energy assessment must distinguish global horizontal irradiance from direct normal irradiance: photovoltaic systems can use diffuse as well as direct radiation, whereas concentrating solar technologies depend mainly on the direct beam. High insolation alone does not determine electricity output; module temperature, dust, shading and system design also matter.

Previous year questions

No UPSC question has been asked directly on this micro-topic yet. Use the practice questions below.
